Metallic Epoxy Floors

Metallic epoxy mixes between two and five colors together, using swirling techniques, so each floor comes out different.

We install metallic epoxy floors in garages and in commercial spaces such as restaurants and laundromats.

What Are Metallic Epoxy Coatings?

Metallic epoxy is a style of epoxy application that involves mixing between two and five colors together using swirling techniques to provide a unique floor.

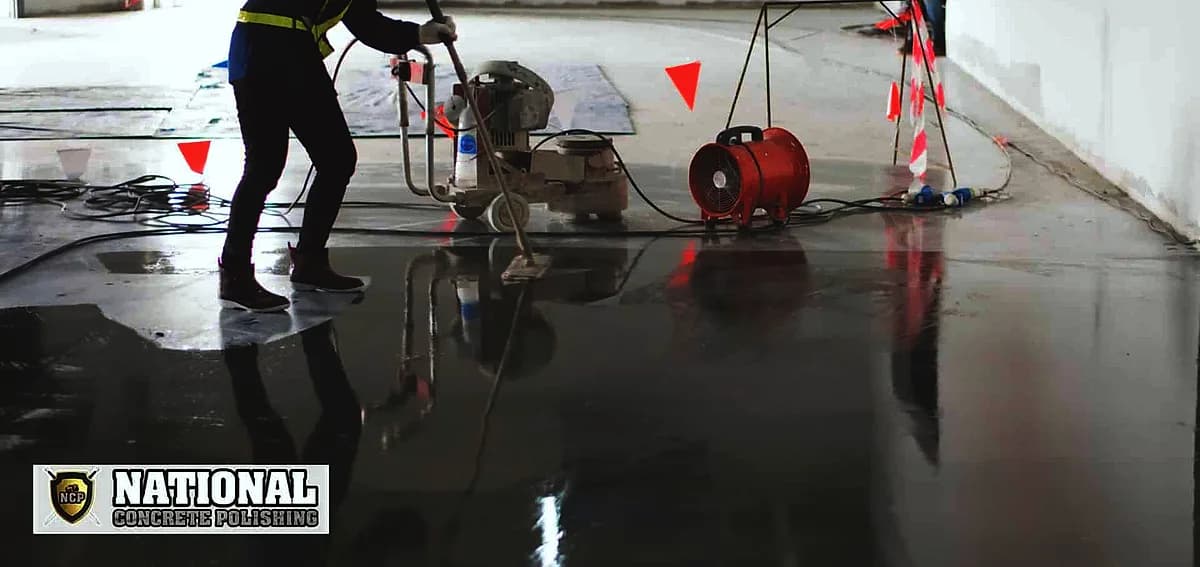

How Are Metallic Epoxy Floor Coatings Applied?

Metallic epoxy is a multi-layered epoxy floor coating method. It uses a metallic component combined with a transparent epoxy finish to generate unique effects. After placing the epoxy on the floor, different solvents, such as denatured alcohol, can ‌dilute and shift the metallic pigments in the epoxy. This ‌gives the appearance of flowing rivers and areas of fractured-looking molten metal on the coating’s surface.

As the epoxy dries, the metallic powder moves through it, forming the lava flow or shimmering design. To produce 3D effects like moon craters, rolling waves, and puddling ripples, certain products are also made to be used with an air nozzle or leaf blower. Also, one may achieve two-tone effects by introducing a second color during the application process.

Color and finish options are reviewed during the consultation. The general order of a metallic floor is as follows, and the system for your floor is set per job.

  1. Grind and repair

    The slab is diamond ground, any old coating comes off and the cracks are filled. The floor has to be flat, because metallic epoxy levels itself and pools in low spots, and dust left behind shows up as specks in the finish.

  2. Test and prime

    The slab is checked for moisture first. A damp slab gets a moisture-mitigating primer, and a dry one gets a standard epoxy primer.

  3. Base coat

    A pigmented base goes down next. On our metallic garage project the base went on in two coats, sanded and patched before the metallic layer.

  4. Metallic coat

    Each color is mixed in its own bucket. The coat is poured in ribbons, spread with a trowel or squeegee and back-rolled so the pigment can travel. It goes on thick. The data sheet for XPS's Rockhard USA epoxy asks for a cured thickness of at least 32 to 40 mils when metallic pigment goes in, to minimize comet trails in the finish, so a gallon covers about 50 square feet at most. Its pot life is 20 minutes at 68°F and 10 minutes at 86°F.

  5. Work the pattern

    While the coat is still wet, it is worked with alcohol spray, air and the roller to raise craters, ripples and swirls, and the installer walks it in spiked shoes to reach the whole floor. The dents the air leaves level out again on their own.

  6. Clear top coat

    A clear top coat protects the metallic layer. Which one goes on depends on the job and is set by the manufacturer's data sheet. An anti-slip additive can go into this coat. The top coat goes on once the metallic coat has dried through. The Rockhard USA sheet puts that at 16 hours at 68°F, with a limit of 36 hours before the top coat has to follow, and past that limit the coat may not bond without surface treatment first. In Florida heat the windows shrink: at 86°F they are 10 and 18 hours.

  7. Cure

    With a standard top coat you can walk on the floor 10 to 24 hours after the last coat and drive or roll on it after 24 to 72 hours. Full cure takes about 7 days. For a fast-cure top coat, the data sheet of the product on the job sets the schedule, and vehicles still wait for the system as a whole.

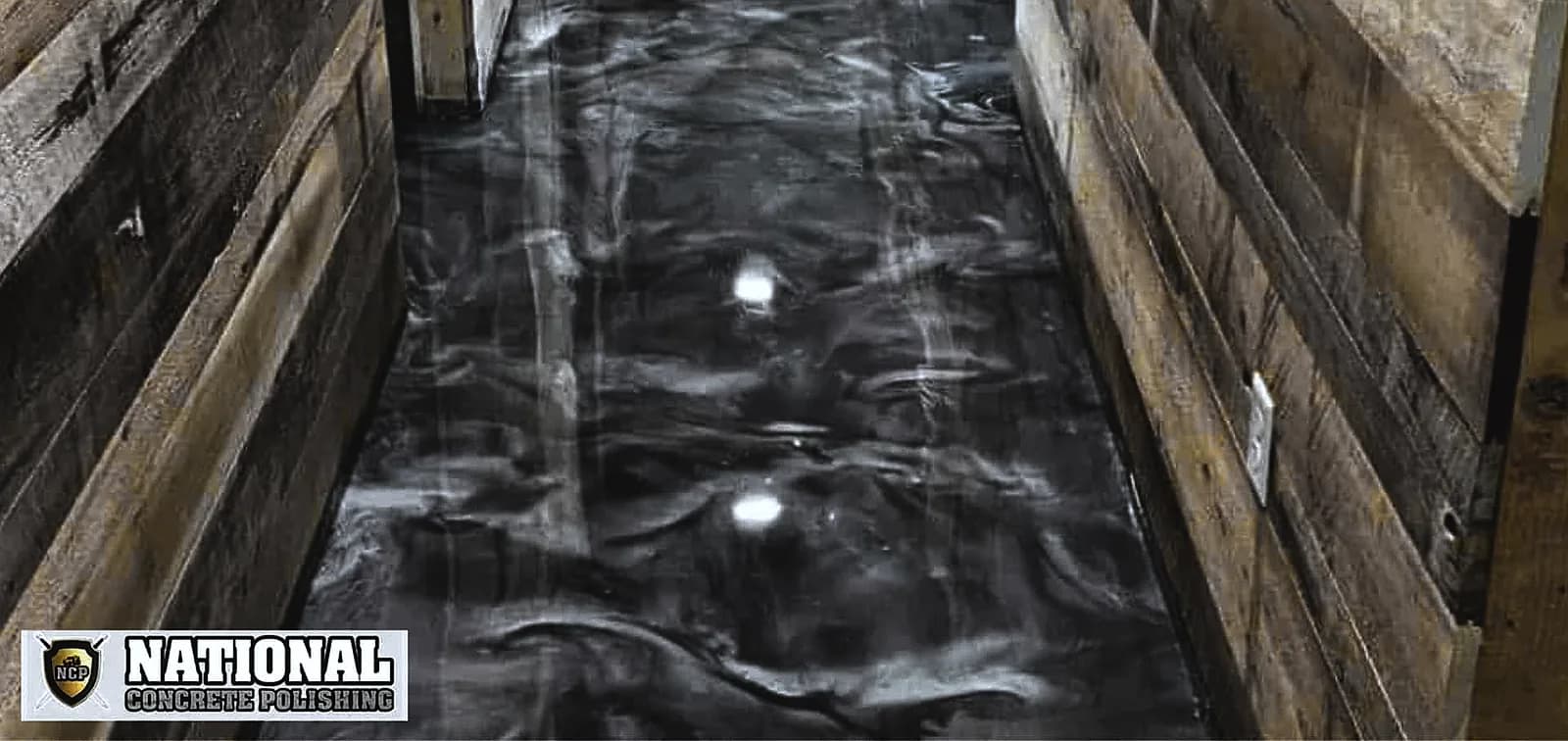

What Can Metallic Epoxy Floors Look like?

Metallic powders are mixed with epoxy and then applied to the concrete over the base coating. This application method allows the epoxy colors to move, forming the lava flow or shimmering design. To produce 3D effects like moon craters, rolling waves, and puddling ripples, certain products are also made to be used with an air nozzle or leaf blower. Also, one may achieve two-tone effects by introducing a second color during the application process.

High-Gloss Finish
A glossy finish that changes with the light.
Swirls and 3D Effects
The pigment moves through the epoxy while it is wet, forming swirls, craters and ripples.
Continuous Coating
A poured, self-leveling coating with no grout lines.
Optional Traction Additive
A traction additive can go into the clear top coat for floors that will get wet.
Chemical and Stain Resistance
How well it resists oils, cleaners and other chemicals depends on the system, and the data sheet of the product on the job lists it.

The options

Styles Of Metallic Epoxy Coatings

A metallic epoxy floor coating can look like the following.

Metallic epoxy floor poured in a marble-slab effect, soft bone and oyster fields crossed by fine graphite and brass veins.
Metallic epoxy floor in a lightning-strike effect, pale pewter and brass forks branching across a near-black graphite ground.
Metallic epoxy floor in a lava-lamp effect, rounded brass and bronze cells floating on a dark graphite ground.
Metallic epoxy floor in a moon-crater effect, rings of graphite opening across a pewter and bronze pour.
Metallic epoxy floor in a liquid-metal effect, long pewter and brass ribbons folding over one another.
Metallic epoxy floor in a thunderstorm effect, charcoal and slate masses billowing across paler pewter openings.
Metallic epoxy floor in a tinted-glass effect, a translucent bronze-grey tint with soft veils sitting at different depths.

Marble slab flooring

What you get

WHY SHOULD YOU GET A METALLIC EPOXY GARAGE FLOOR?

There are several benefits of a metallic epoxy floor. So here are a few:

  • RESISTANCE AND RESILIENCE

    Metallic epoxy is a hard, resin-based coating. How well it resists chemicals and heat depends on the system, and the data sheet of the product on the job lists it.

  • ONE-OF-A-KIND DESIGN

    A metallic finish is appealing because the colors and the way the epoxy is worked give a different result every time.

  • THE WOW FACTOR

    A metallic finish turns a plain concrete floor into a feature of the room, in homes and commercial spaces.

  • SAFETY

    A glossy metallic floor can become slippery when wet. Mats and felt pads under furniture protect the floor.

    A traction additive can go into the clear top coat for floors that will get wet. How much grip it adds, and how much it changes the look, depends on the additive and how much goes in.

  • LONGEVITY

    How long a metallic floor lasts depends on traffic, abrasion, chemicals, moisture and upkeep.

WHAT MAKES METALLIC EPOXY FLOORING UNIQUE?

Metallic epoxy is a two-part resin that cures into a hard, glossy surface. Metallic mica pigments are mixed into the clear coat, which gives the finished floor an unusual look.

No two floors come out the same, because the metallic colors blend at random in the epoxy.

Water stays on top of a cured epoxy floor and wipes off.

METALLIC EPOXY COLOR OPTIONS FOR YOUR GARAGE

Metallic floors in garages come in a wide range of colors and effects. Common approaches are:

Same-color effect: To get this look, use a single metallic color for both the base and top layers. A windblown or stormy-sea effect can be achieved using several finish methods, such as a one-stroke back-roll.

Two-color effect: Adding two metallic tones to the top layer of an epoxy finish with a metallic or plain epoxy color as the foundation gives the finish a layered look.

Two-tone effect: A simple base layer and a metallic top layer together give a calmer look.

The Artistry & Science of Metallic Epoxy

At National Concrete Polishing, we install metallic epoxy floors with a fluid, organic look that can resemble molten metal, ocean waves or clouds. Each floor comes out different, because the metallic pigments move while the coat is wet. We install them in garages and in commercial spaces such as restaurants and laundromats.

How Light Plays on Metallic Epoxy

A metallic epoxy floor looks different as the light and your position change.

What customers say

What customers say on Google

4.0 out of 5, from 37 ratings on our Google profile. We do not hand-pick these.

Reviews powered by Google

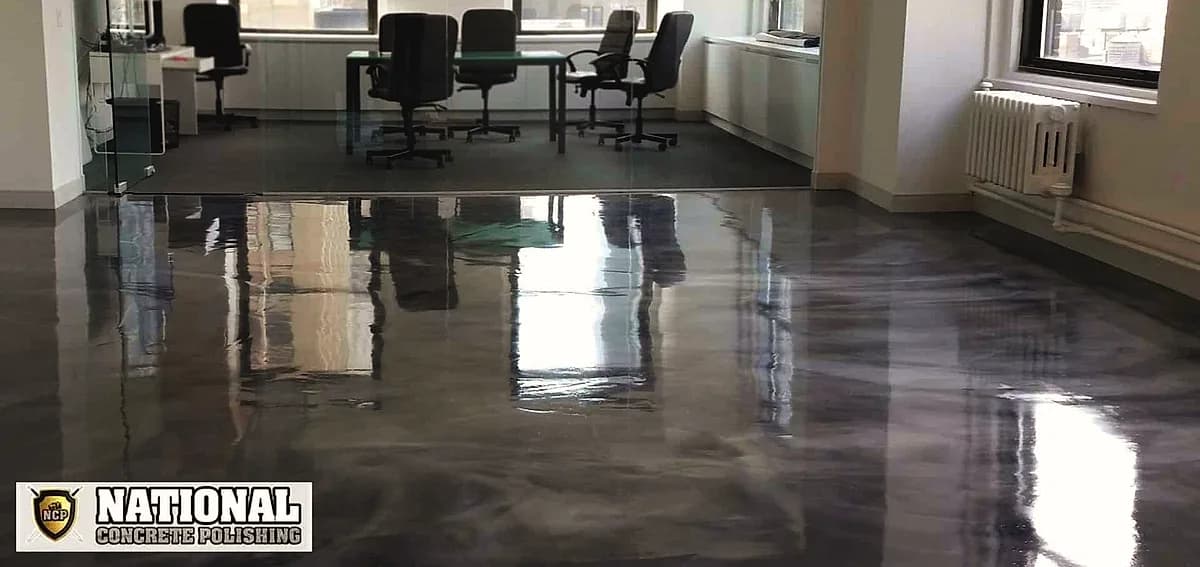

Metallic epoxy floors we installed

Common questions

How long it lasts depends on traffic, abrasion, chemicals, moisture and upkeep, so we judge it per floor rather than quote one number.

It needs very little. Dust-mop or sweep to keep grit off, and damp-mop with warm water and a pH-neutral cleaner or mild soap, then rinse. Skip wax.

The benefit of selecting a metallic-epoxy floor coating for your home or business garage is that you can custom design it to match the aesthetic of your present home decor. This flooring coating creates a high-gloss, gleaming surface that may update the look of your floor.

The old coating comes off first, by diamond grinding or shot blasting, because a new coat holds only as well as what it is bonded to. Tile comes up too, and we grind the slab underneath.

Indoors and out of direct sun it can work, as in a garage. In direct sun it is likely to yellow, because the clear epoxy itself can discolor in long sunlight exposure, and XPS says on its product page that its metallic powder pigments are not to be used in exterior applications or where exposure to ultraviolet radiation will cause yellowing and chalking. For open patios, pool decks and driveways we do not recommend it. Ask us about an outdoor system.

A metallic garage goes down in several layers. The metallic garage in our projects, about 400 square feet, took four days on site. Larger and commercial floors are scheduled per job, and for commercial work we give you the dates in writing along with the price.

On commercial work, metallic epoxy starts at $12 per square foot. For homes we give a written price after we have seen the floor, based on the measured area, the prep and the system you choose. Old coatings, repairs, moisture, a complex pattern and the choice of top coat all move the number.
